5 bike hitch rack empty
VelociRAX 5
VelociRAX 5
VelociRAX 5
VelociRAX 5
VelociRAX 5
VelociRAX 5
VelociRAX 5
VelociRAX 5

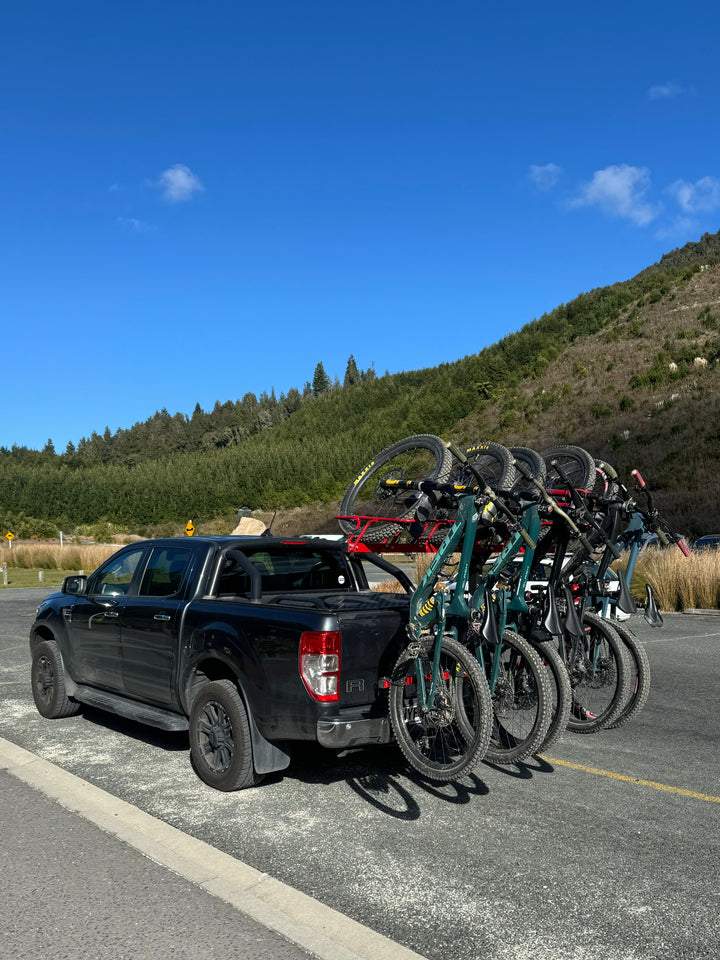

VelociRAX 5 on Ford Ranger in Rotorua

VelociRAX 5

Regular price$1,435.00
/
Tax included. Shipping calculated at checkout.

  • Orders ship next business day
  • In stock, ready to ship
  • Inventory on the way

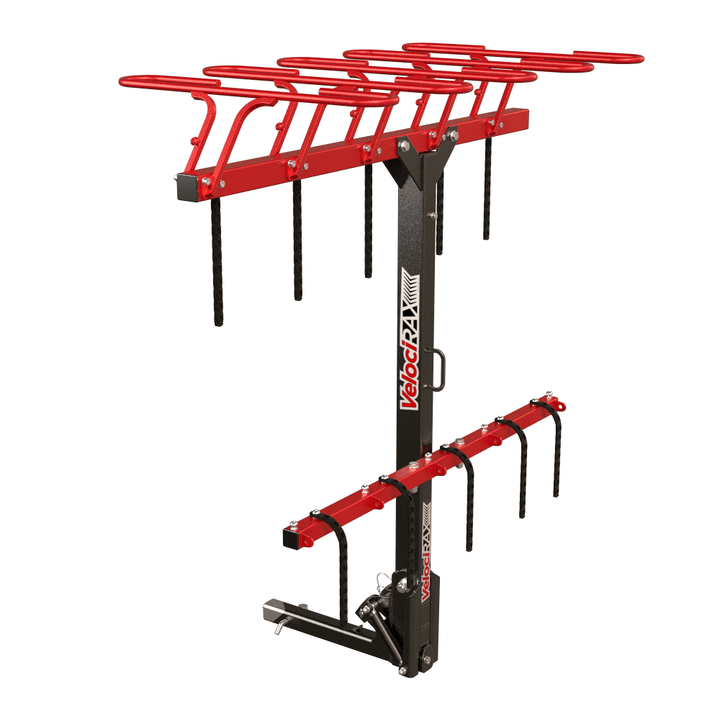

The VelociRAX 5 is a bike rack for hitches that holds up to five bikes and has 25.4 cm (10-inch) spacing between tire baskets. This rack size fits perfectly behind SUVs and can comfortably transport several bikes without exceeding the body of an SUV size car. This rack takes the stress out of loading a group of bikes, and kids can load bikes too! You can't beat a five-bike hitch rack the whole family can load that also leaves room to access the back of the car. Let your bike rack do the work so you can enjoy the ride! VelociRAX are patent pending with user-friendly features.

There is no need to lift bikes onto this rack when using the roll-in and roll-out loading method, which means kids can load their bikes! Integrated hydraulic dampers assist fully loaded racks when lowering to the load position, so don’t worry about bikes crashing down when lowering this rack. All VelociRAX also come with a garage wall mount that can be used to store this rack with bikes when the rack is not on a vehicle.

You can fully load this rack with flat handlebar bikes (like mountain bikes), but a drop handlebar bike (like a road bike) can fit on the far end if desired.

- Hinge assist dampers for fully loaded hinging
- Garage wall mounting kit
- Built-in anti-rattle mechanism
- VelociRAX tire straps
- Rubber bands for brake lever engagement
- 12.7 mm (1/2-inch) hitch pin with keyed lock
- All needed hardware
- Assembly and Use Instructions​

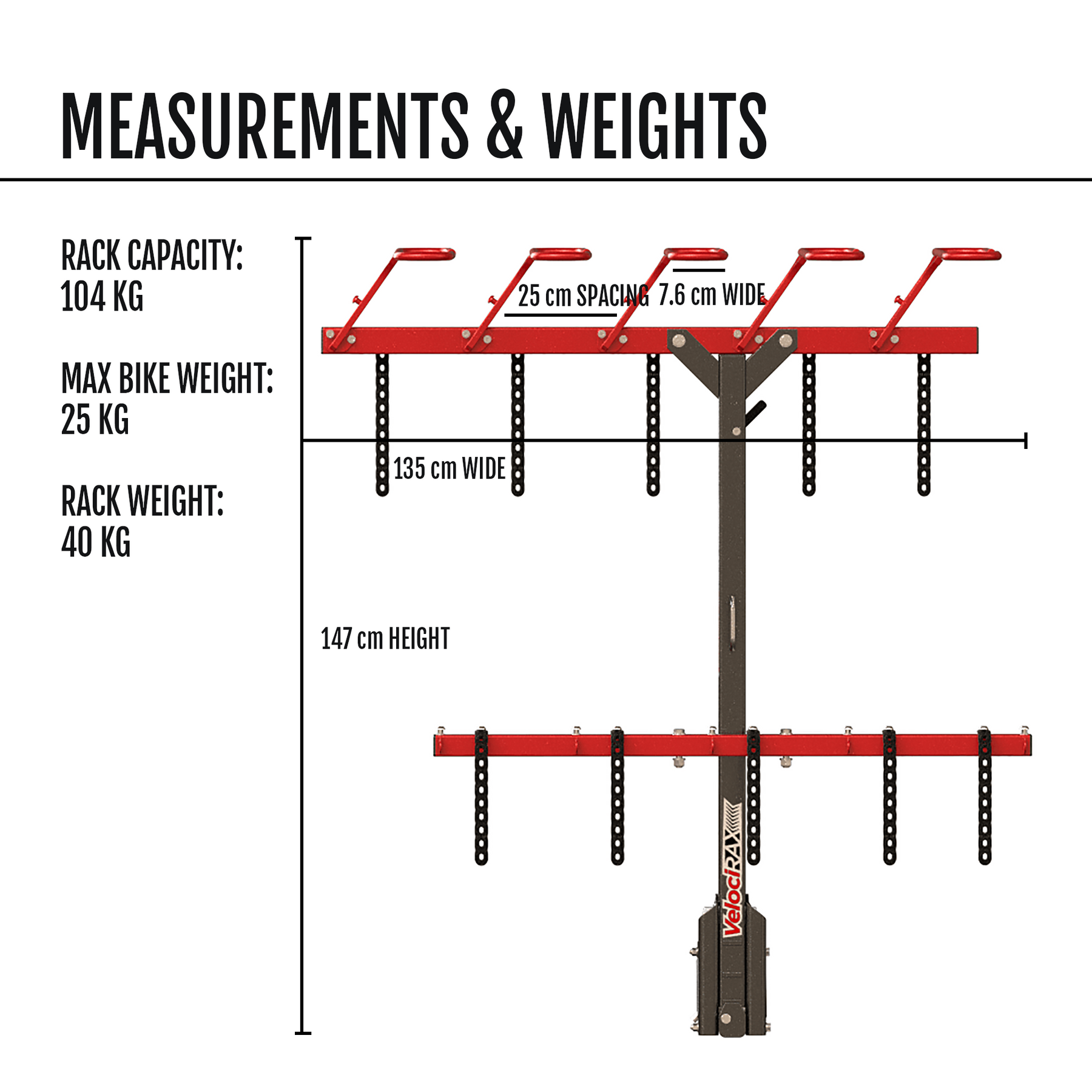

- 10-inch spacing between bikes

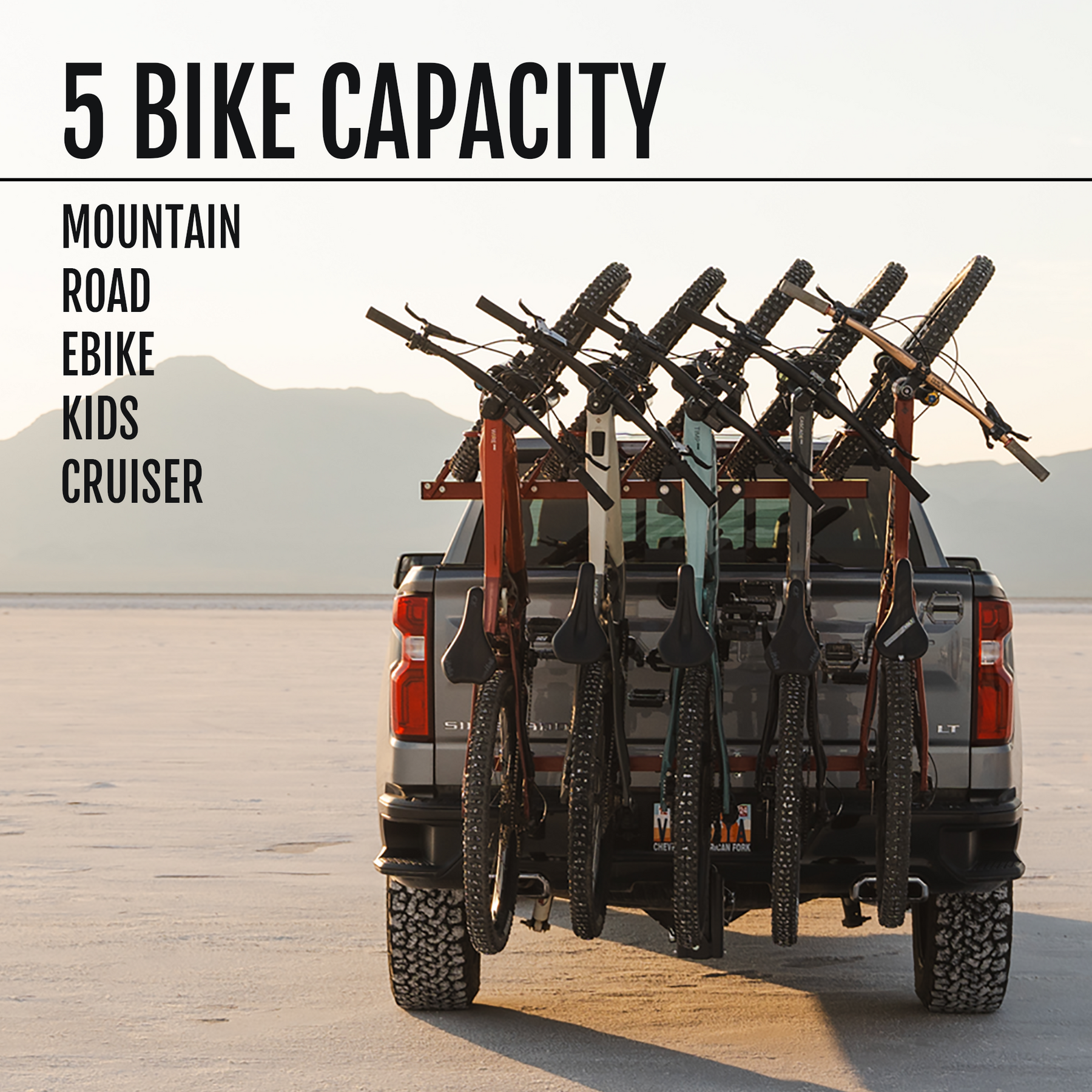

- Hitch mounted vertical bike rack holding up to 5 bikes
- Assembled width 53 inches
- Assembled height 58 inches
- Weight 89 lbs
- Load capacity 230 bike lbs at 55 lbs per bike max
- eBike ready: 4 standard ebikes (we recommend removing batteries if you are able)
- Ships in 3 boxes (1 - 50"x6"x6", 2 - 27"x13"x9", 3 - 58"x12"x7")

- 86mm (3 3/8-inch) depth past center of hitch pin hole to insert a VelociRAX
- 50mm (2-inch) Class III  hitch with tongue capacity of 227 kg (500 lbs)
** Note - 2022 and newer Subaru CrossTrek and Outback and Ford Ranger lack sufficient depth on the factory hitch receiver.

Instructions for building your VelociRAX
PDF                               VIDEO

- Orders ship next business day

- Typically arrives in 3-5 business days

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Self Lowering

Integrated Hydraulic Dampers

Fully assisted lowering down to the loading position.

Fast & Easy Loading

Hit the trails faster, pack up and be on your way easier with roll in and out loading.

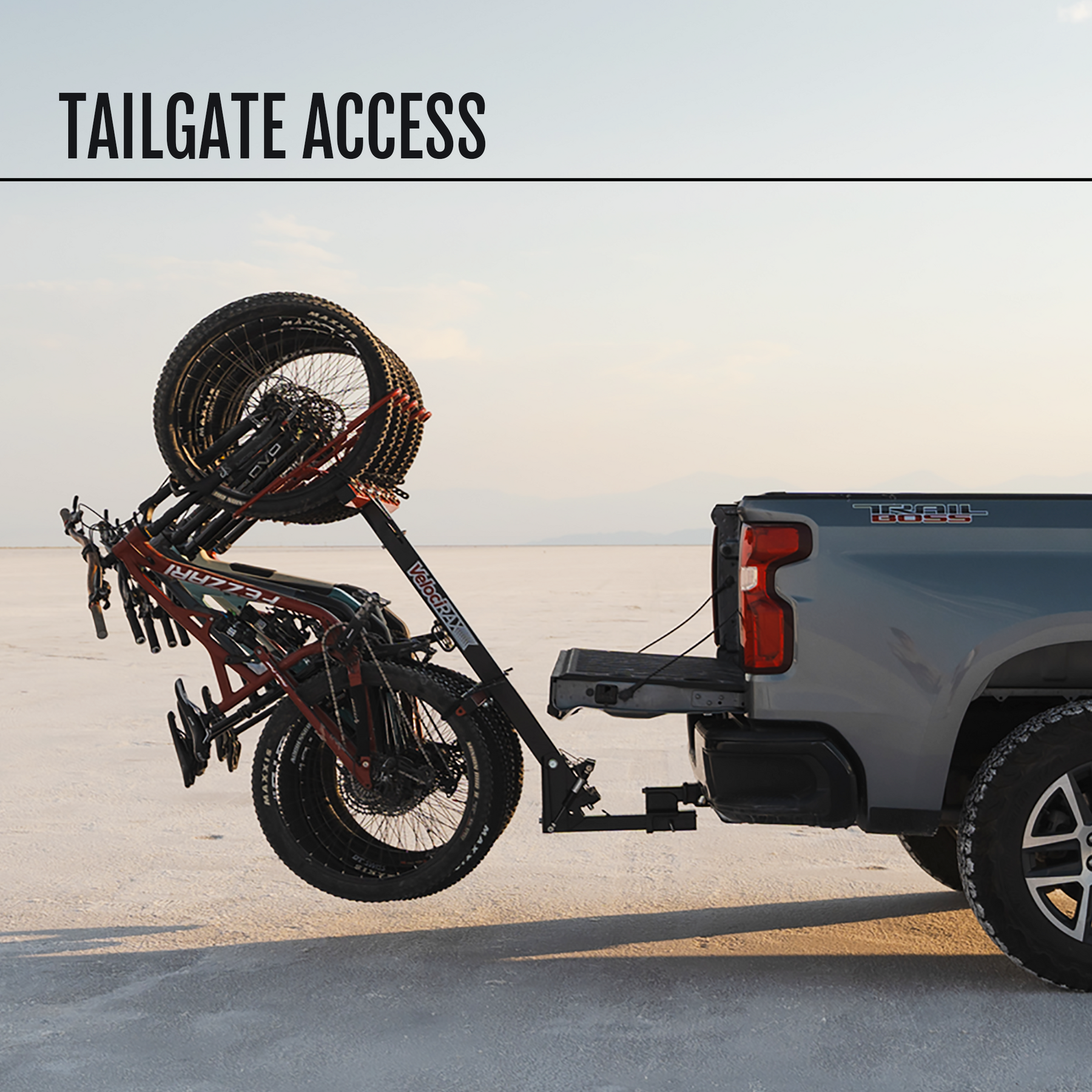

Vehicle Access

Get to all your gear without removing your rack.

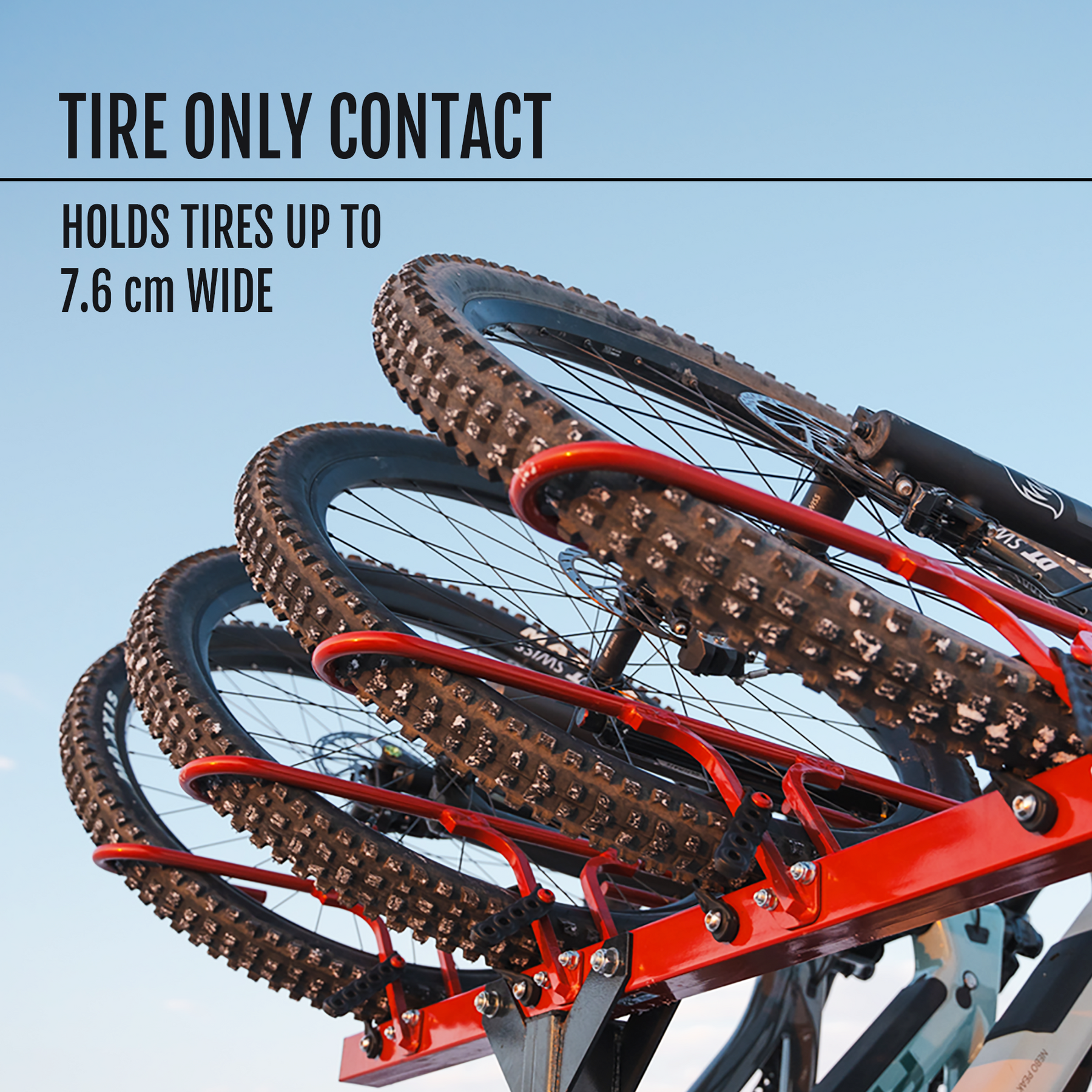

Tire Only Contact

No hanging by the forks or frame, risking damage to expensive bikes, VelociRAX feature contact only via tires to protect your bikes.
